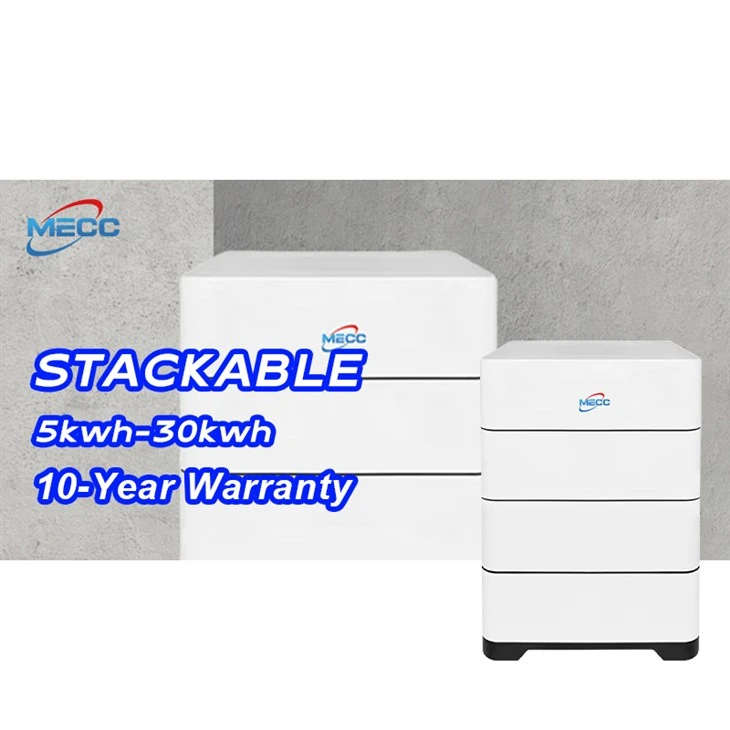

51,2V 5KWh Lifepo4 stacked batareya

51,2V 5KWh Lifepo4 stacked batareya

Mahsulot tavsifi 5-30KVt/soat yigʻilgan lityum batareyalar ■ Yuqori xavfsizlik: A darajasi va yangi. ■ O'rnatilgan BMS bir nechta himoyasi. ■ Uzoq umr: 6000 tsikl. ■ Yuqori quvvat: Katta quvvatli ilovalarning ehtiyojlarini qondirish uchun batareya paketlaridan parallel foydalanish ■ 48V/51.2V 100AH/200AH quvvat devori 48V...

Mahsulotni tanishtirish
Mahsulotlar tavsifi

5-30KVt/soat yig‘ilgan lityum batareyalar

■ Yuqori xavfsizlik: A sinf va yangi.
■ O'rnatilgan BMSbir nechta himoya.

■ Uzoq umr: 6000 tsikl.
■ Yuqori quvvat: Katta hajmli ilovalar ehtiyojlarini qondirish uchun batareya paketlaridan parallel foydalanish

■ 48V/51,2V 100AH/200AH



Model 48100 48200
Spetsifikatsiya 48V100Ah 51,2V100Ah 48V200Ah 51,2V200Ah
Kombinatsiya 15S1P 16S1P 15S1P 16S1P
Imkoniyat 4,8 kVt/soat 5,12 kVt/soat 9,6 kVt/soat 10,24 kVt/soat
Standart tushirish oqimi 50A 50A 50A 50A
Maks. tushirish oqimi 100A 100A 100A 100A
Ish kuchlanish diapazoni 40.5 - 54VDC 43.2 - 57.6VDC 40.5 - 54VDC 43.2 - 57.6VDC
Standart kuchlanish 48VDC 51,2VDC 48VDC 51,2VDC
Maks. zaryadlash oqimi 50A 50A 100A 100A
Maks. zaryadlash kuchlanishi 54V 57.6V 54V 57.6V
Velosiped 3000 - 6000cycles @ DOD 80%/25 degree /0.5C
Ishlaydigan namlik 65±20% RH
Ishlash harorati -10 - +50 daraja
Ishlash balandligi 2500 m dan kam yoki unga teng
Sovutish usuli Tabiiy sovutish
O'rnatish Stack o'rnatish
Himoya darajasi IP20
Maksimal parallel 15 dona
Kafolat 5 - 10 Yil
Aloqa Standart: RS485/RS232/CAN Majburiy emas: WiFi/4G/Bluetooth
Sertifikatlangan Idoralar ROHS FCC UN38.3 MSDS
Mahsulot hajmi 400 * 200 * 460 mm 400 * 240 * 460 mm
Paket hajmi 460 * 230 * 545 mm 460 * 270 * 545 mm
Sof og'irlik 50 kg 53 kg 102 kg 106 kg
Brutto vazni 55 kg 58 kg 112 kg 116 kg





Power wall battery011

Power wall battery021





Power wall battery061

Power wall battery081


Quvvat devori 48V 100AH

product-620-727
product-615-727
product-653-727




Yig'ilgan 48V 100AH

product-620-731
product-615-731
product-653-731




Vertikal 48V 200AH




product-620-739
product-615-739
product-653-739

Power wall battery091

product-924-630
product-925-630
product-615-612
product-621-612
product-613-612
product-924-625
product-925-625

Power wall battery101

product-924-821
product-921-821
product-615-798
product-616-798
product-614-798


product-924-823
product-921-823


TSS

- Silindrsimon lityum batareyalarning standart o'lchamlari qanday?

Umumiy o'lchamlarga 18650, 21700 va boshqalar kiradi.

- Silindrsimon lityum batareyaning polaritesini qanday aniqlash mumkin?

Odatda batareya qutisida ijobiy va salbiy terminallarni ko'rsatadigan belgilar mavjud.

- Silindrsimon lityum batareyalarni ketma-ket yoki parallel ulash mumkinmi?

Ha, lekin to'g'ri ulanish usullari va himoya sxemalarini qo'llash kerak.

- Silindrsimon lityum batareyalarning maksimal uzluksiz zaryadsizlanish oqimi qancha?

Bu batareyaning texnik xususiyatlariga bog'liq.

- Silindrsimon lityum batareyalar qanday qadoqlanadi?

Odatda ular alohida plastik yoki metall korpuslarda keladi.

- Silindrsimon lityum batareyalarda o'ziga xos xavfsizlik xususiyatlari bormi?

Ba'zilarida o'rnatilgan xavfsizlik klapanlari yoki boshqa himoya mexanizmlari bo'lishi mumkin.
