Mahsulotlar tavsifi

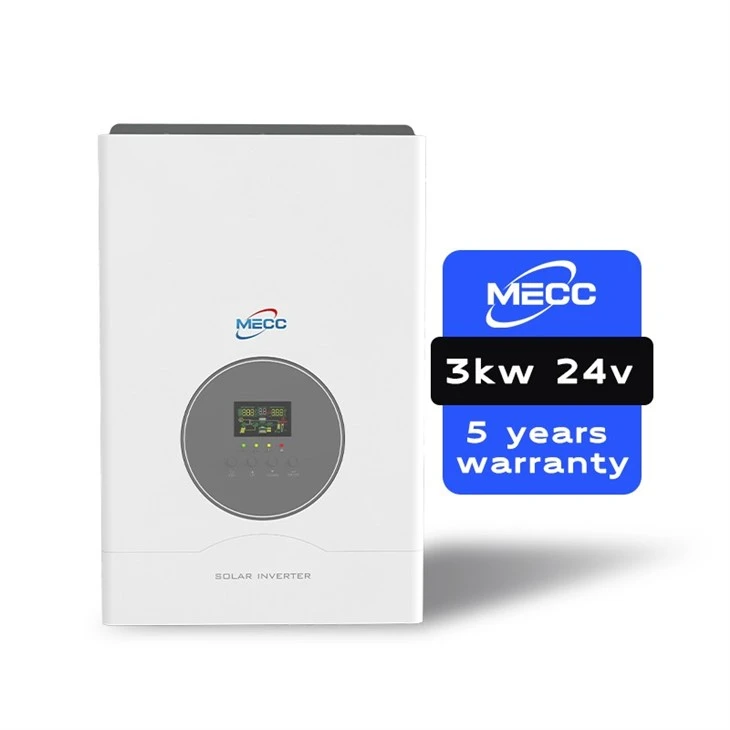

O'chirilgan tarmoq inverteri
|
Quyosh nuri yoki shamol mavjud ekan, cheksiz energiya ishlab chiqarish imkoniyati. Energiyani yaxshiroq boshqarish uchun aqlli uy texnologiyalari bilan mos keladi. Yoqilg'i saqlash va generatorlardan to'kish bilan bog'liq ekologik xavflarni yo'q qiladi. |
Mahsulot parametri
|
ModeI |
GD3024ML |
GD3024JMH |
GD5548JMH |
GD11048MHB |
|
PV kirish |
||||
|
PV maksimal kirish quvvati |
1500W |
3500W |
5500W |
5500W+5500W |
|
MPPT kuchlanish diapazoni |
30 ~ 115 Vdc |
120 ~ 430 Vdc |
120 ~ 430 Vdc |
120 ~ 450 Vdc |
|
PV zaryadlash usuli |
MPPT*1 |
MPPT*1 |
MPPT*1 |
MPPT*2 |
|
Maksimal PV kirish kuchlanishi |
145 Vdc |
450 Vdc |
450 Vdc |
450 Vdc |
|
Maksimal PV zaryadlash oqimi |
60A |
100A |
100A |
80A+80A |
|
Batareya |
||||
|
Nominal kuchlanish |
24Vdc |
24Vdc |
48Vdc |
48Vdc |
|
Doimiy kuchlanish zaryadlash kuchlanishi (ixtiyoriy) |
28,2V to'g'ridan-to'g'ri oqim |
28,2V to'g'ridan-to'g'ri oqim |
56,4 Vdc |
56,4 Vdc |
|
Suzuvchi zaryad kuchlanishi (ixtiyoriy) |
27Vdc |
27Vdc |
54Vdc |
54Vdc |
|
AC kirish |
||||
|
Bosqich |
L+N+PE |
|||
|
Nominal kuchlanish |
208/220/230/240VAC |
|||
|
Voltaj diapazoni |
154-264VAC±3V(Oddiy rejim)185-264VAC±3V(UPS rejimi) |
|||
|
Chastota diapazoni |
50Hz/60Hz (moslashuvchan) |
|||
|
AC chiqishi |
||||
|
Nominal quvvat |
3000W |
3000W |
5500W |
11000W |
|
Maksimal quvvat |
6000VA |
6000VA |
10000VA |
20000VA |
|
Chiqish kuchlanishi (AC) |
208/220/230/240VAC±5% |
|||
|
Maksimal AC zaryadlash oqimi |
60A |
60A |
100A |
80A+80A |
|
Chiqish chastotasi |
50/60Hz±0,1% |
|||
|
To'lqin shakli |
Sof sinus to'lqin |
|||
|
Maksimal samaradorlik (batareya rejimi) |
>94% |
>94% |
>94% |
>94% |
|
Displey va aloqa |
||||
|
LCD displey |
Ishlash rejimi/yuklash/kirish/chiqish va h.k. |
|||
|
Ishlash muhiti harorati |
0~40 daraja |
|||
|
Ish muhitining namligi |
20% ~ 95% (kondensatsiyalanmagan) |
|||
|
Saqlash harorati |
-15~60 daraja |
|||
|
Shovqin |
50 db dan kam yoki unga teng |
|||
|
Hajmi L * W * H (mm) |
495*312*125 |
|||
|
Og'irligi (KG) |
9.5 |
9.5 |
12.5 |
21.5 |
